Custom Bargraph

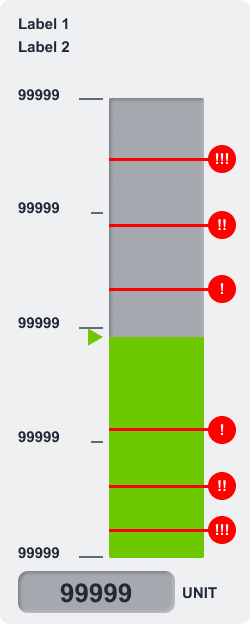

The Custom Bargraph control is a powerful and configurable widget designed to visualize real-time data as a horizontal or vertical bargraph. It offers extensive customization options, making it ideal for monitoring analog values such as temperature, pressure, or fill levels.

Overview

This control not only displays a continuously updating bargraph tied to a variable, but also allows for the presentation of numeric values, units, labels, and alarm thresholds—enabling quick and intuitive interpretation of system states.

Key Features

Dynamic Data Display

Connect to a real-time data variable (e.g., from CODESYS or MQTT).
The bar height/length reflects the live value.

Numerical Value & Unit

Optionally display the current value numerically alongside the bar.
Add a unit suffix (e.g., °C, %, bar) for context.

Custom Labels

Add up to two labels (e.g., "Input Pressure", "Max Safe").
Use them to describe or categorize the visualized value.

Intermediate Markers

Display up to 5 intermediate values as reference markers on the bar.
Useful for denoting ranges, such as “Optimal”, “Critical”, or “Warning”.

Alarm Thresholds

Define up to 6 alarm limits.
Each limit can visually indicate when the value enters a critical range, allowing operators to respond quickly to anomalies.

Configurable Appearance

Adjust colors, bar direction (horizontal or vertical), and styling to match your interface.

Use Cases

Process Monitoring

Example: Show tank fill levels or pump pressure with visual thresholds for overfill or underpressure warnings.

Environmental Metrics

Example: Display temperature or humidity with clearly marked safe and danger zones.

Production Lines

Example: Monitor speed, load, or material count and show warning states if a process exceeds defined limits.

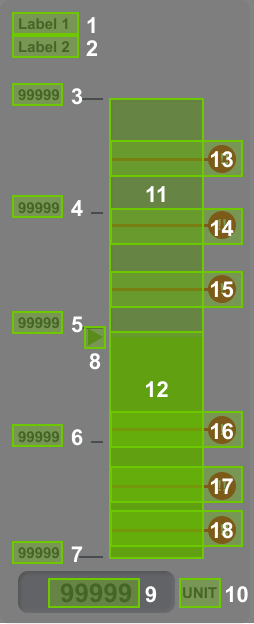

SVG ID Reference Table

Use the following SVG IDs to correctly assign dynamic values to elements within the Custom Bargraph:

#	Element	SVG ID
1	Label Line 1	`label_1_tspan`
2	Label Line 2	`label_2_tspan`
3	Intermediate Value 5	`tick_major_5_value`
4	Intermediate Value 4	`tick_major_4_value`
5	Intermediate Value 3	`tick_major_3_value`
6	Intermediate Value 2	`tick_major_2_value`
7	Intermediate Value 1	`tick_major_1_value`
8	Thumb (Current Value Indicator)	`thumb`
9	Main Value	`value_tspan`
10	Unit	`label_unit_tspan`
11	Bargraph Range	`barPath`
12	Bargraph Fill	`barFill`
13	Limit 1	`limit_hi_3`
14	Limit 2	`limit_hi_2`
15	Limit 3	`limit_hi_1`
16	Limit 4	`limit_lo_1`
17	Limit 3	`limit_lo_2`
18	Limit 3	`limit_lo_3`
19	Root Class	`custom_control_root`

DATA JSON Interface

{
    "value": "20",
    "label1": "Custom Bar label 1",
    "label2": "Custom Bar label 2",
    "unit": "",
    "ticks": [
        "0",
        "10",
        "20",
        "50",
        "100"
    ],
    "parameters": {
        "pMin": -20,
        "pMax": 200,
        "pLimitHi1": {
            "enabled": true,
            "value": 150
        },
        "pLimitHi2": {
            "enabled": true,
            "value": 170
        },
        "pLimitHi3": {
            "enabled": true,
            "value": 190
        },
        "pLimitLo1": {
            "enabled": true,
            "value": 20
        },
        "pLimitLo2": {
            "enabled": true,
            "value": -10
        },
        "pLimitLo3": {
            "enabled": true,
            "value": -15
        }
    },
    "theme": {
        "barBorder": "",
        "barPath": "",
        "barLFill": "",
        "barRFill": "",
        "thumb": ""
    },
    "general": {
        "rootClass": ""
    }
}

**Live Demo*
